Valley Yarns #200 Shadow Weave Pillows

Valley Yarns Shadow Weave Pillows

Project Overview

The Valley Yarns Shadow Weave Pillows project is a downloadable weaving draft designed by Barbara Elkins that produces two finished 14" x 14" decorative pillows using the shadow weave technique. This homeware project draws inspiration from classic shadow weave patterns and offers weavers the opportunity to create elegant, textured pillows with striking visual depth through the interplay of light and dark yarns.

What Is Being Made

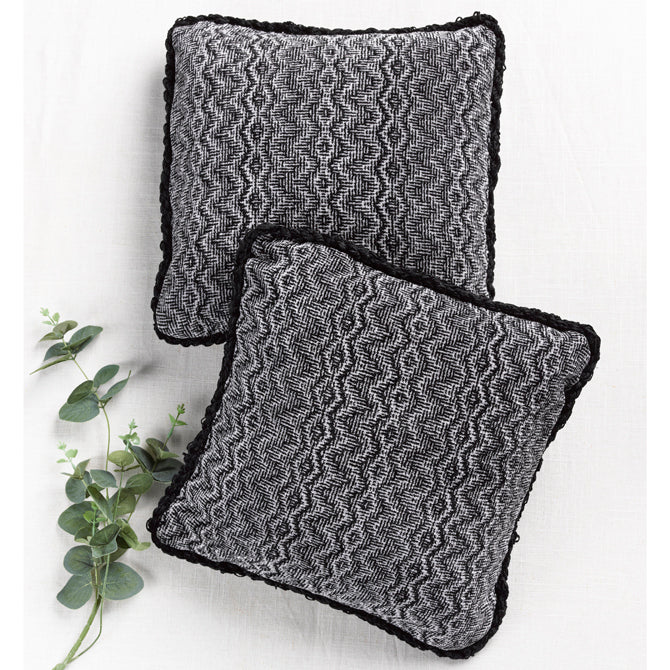

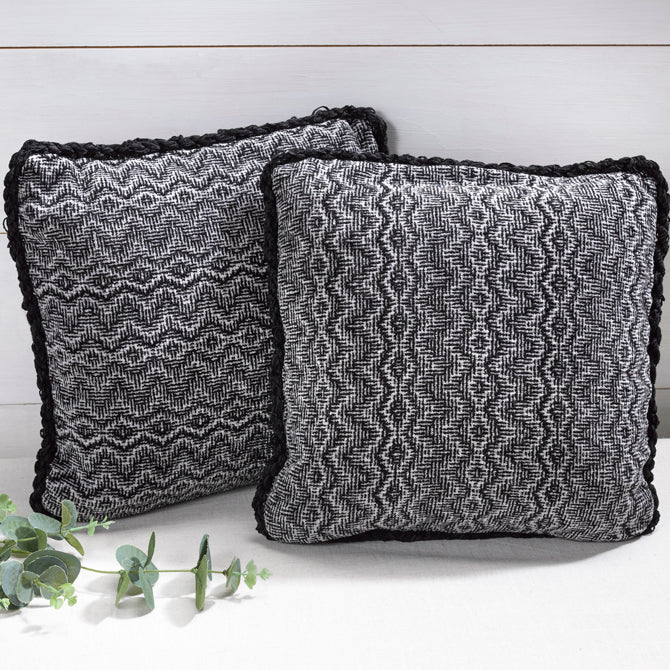

This project yields two finished pillows measuring 14" x 14" each. The pillows are constructed using woven fabric created on a 4-shaft loom, finished with pillow inserts (either 14" commercial inserts or hand-stuffed alternatives). Optional piping cord in black rayon chenille can be added for a refined finished edge. The completed pillows showcase the distinctive visual effects of shadow weave, where contrasting yarn colors create dimensional patterns that appear to shift and change depending on viewing angle and light.

Weaving Technique: Shadow Weave

Shadow weave is a 4-shaft weaving structure that creates optical illusions through the strategic placement of contrasting colored yarns in the warp and weft. The technique relies on the principle that when warp and weft yarns of different colors are raised and lowered in specific sequences, areas of the fabric appear darker or lighter based on which color dominates the surface. This project is based on patterns from the authoritative reference 1000+ Patterns in 4, 6, and 8 Harness Shadow Weaves by Marian Powell. The draft offers multiple treadling options, allowing weavers to produce different pattern variations using the same threading setup.

Loom and Equipment Requirements

• 4-shaft loom with minimum 22" weaving width
• 8-dent reed (using 2/dent threading)
• Two shuttles and two bobbins for managing separate yarn colors
• Temple (recommended for maintaining consistent fabric width)
• Two 14" pillow inserts, or materials for hand-stuffing pillows
• Fringe twister (optional; fingers may be used alternatively)

Yarn and Materials

Warp Yarns: Valley Yarns Rayon Chenille (100% rayon chenille, 1450 yards per pound) in two colors—Black (544 yards) and Light Gray (548 yards)—held together and warped in parallel to create the color contrast essential to shadow weave.

Weft Yarns: Valley Yarns Rayon Chenille (100% rayon chenille, 1450 yards per pound) in Black (300 yards) and Light Gray (300 yards), woven in alternating sequences to produce the shadow effect.

Optional Finishing: Valley Yarns Rayon Chenille in Black (140 yards) for piping cord trim.

Rayon chenille is chosen for its lustrous appearance, soft hand, and excellent drape—qualities that enhance the visual impact of shadow weave patterns and create pillows with a luxurious feel.

Warp and Weaving Specifications

• Total Warp Length: 4 yards of 273 ends (including 2 floating selvages)
• Sett: 16 ends per inch (epi), achieved using 2/dent threading in an 8-dent reed
• Width in Reed: 17"
• Weft Density: 16 picks per inch (ppi) or as close as possible; a firmer weave is preferable to a loose one
• Finished Pillow Size: 14" x 14" (two pillows per warp)

Stitches and Structural Elements

Shadow weave does not employ traditional hand-stitching techniques; rather, it is a structural weaving pattern created through the manipulation of warp and weft on the loom. The "stitches" are the interlacing sequences of the threading and treadling. Weavers will use two different treadling options provided in the draft to vary the pattern appearance while maintaining the same warp threading. After weaving, the fabric is finished by sewing the woven panels together around three sides, inserting the pillow form or stuffing, and closing the fourth side. Optional piping cord is sewn along the seams for a professional finish.

Design and Pattern Characteristics
