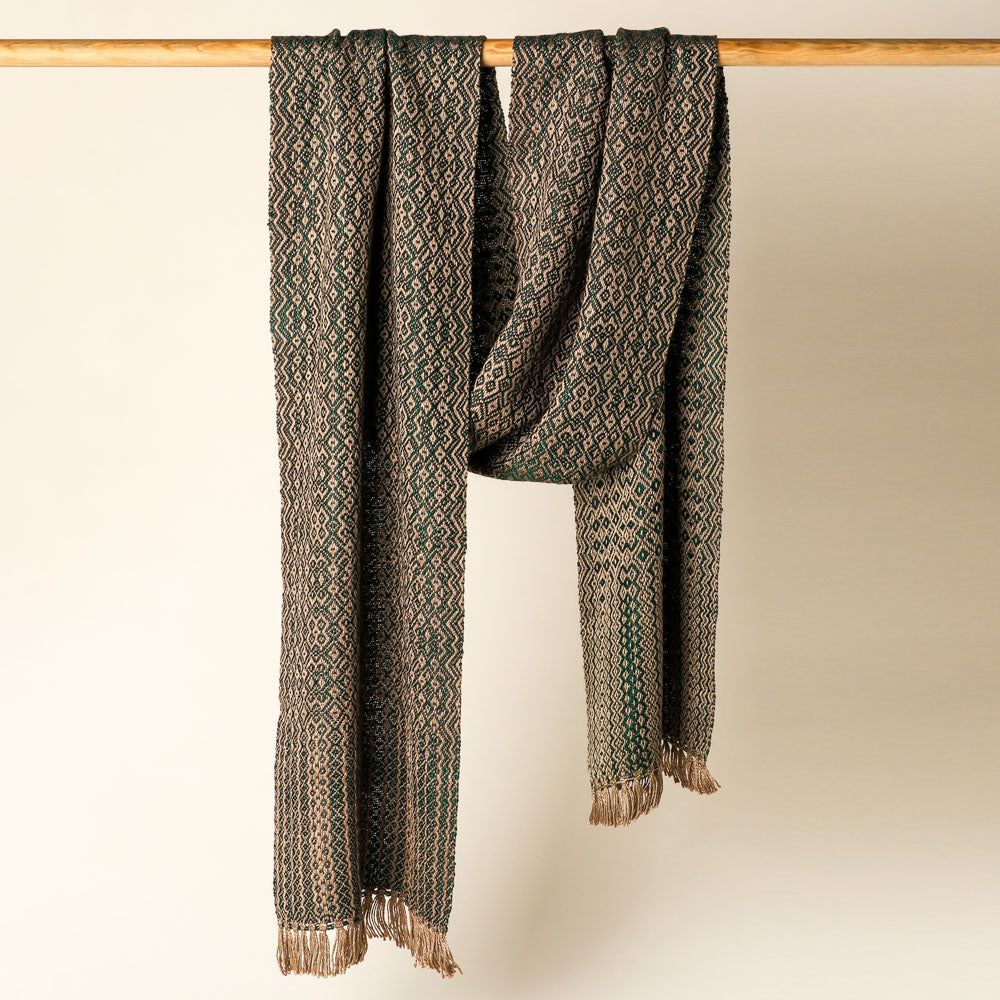

Valley Yarns #301 Cascading Diamonds Scarf

Valley Yarns Cascading Diamonds Scarf

Project Overview

The Cascading Diamonds Scarf is a woven design created by Merriel Miller that combines visual complexity with accessible weaving technique. This scarf is crafted to be a versatile accessory suitable for casual wear with jeans or elegant enough for special occasions. The finished scarf measures 10 inches wide by 80 inches long, plus 1.5 inches of fringe on each end, making it a substantial and wearable finished piece.

What Is Being Made

This project produces a soft, draping scarf featuring a cascading diamond pattern. The design showcases the luxurious qualities of bamboo yarn, which creates exceptional fluidity and movement in the finished textile. The scarf is long enough to wear wrapped or draped in multiple styling options.

Weave Structure and Technique

Weave Structure: The Cascading Diamonds Scarf uses a Modified Point Twill weave structure. This technique creates the diamond pattern through a systematic variation in the threading and treadling sequence, producing a visually intricate design that appears more complex than the actual weaving process.

Loom Requirements: This project requires an 8-shaft loom with a minimum weaving width of 15 inches. The loom must accommodate a single shuttle and bobbin for the weft insertion process.

Warp and Sett: The warp is wound to 3.5 yards in length with 219 ends total, including floating selvedges at each edge. The sett is 18 ends per inch (epi), achieved by threading 1-2 ends per dent in a 12-dent reed. The weaving width in the reed is 12 3/12 inches. The warp density of 18 epi combined with a pick density of 16 picks per inch (ppi) creates a balanced, stable fabric with excellent drape characteristics.

Stitches and Structural Elements

The weaving draft includes a 3x Tie-Up configuration and a 14x Treadling Draft that creates the cascading diamond pattern through systematic shaft combinations. Floating selvedges are incorporated at each edge in their own dents to create finished selvage edges. The pattern is secured at both ends using hemstitching technique, worked in groups of 8-9 ends over the first three weft picks. This reinforces the woven structure and prevents unraveling while creating a finished edge detail.

Materials

Yarn Specifications: The Cascading Diamonds Scarf is woven entirely with Valley Yarns 5/2 Bamboo, a 100% rayon fiber derived from bamboo. This yarn is sold on approximately 1-pound cones with a yardage of 2,100 yards per pound.

Warp Yarn: Valley Yarns 5/2 Bamboo in Taupe (color #767) is used for the warp. The project requires 767 yards of warp yarn.

Weft Yarn: Valley Yarns 5/2 Bamboo in Dark Green is used for the weft. The project requires 574 yards of weft yarn. The color contrast between the taupe warp and dark green weft enhances the visibility of the cascading diamond pattern.

Equipment: Weaving requires a single shuttle and bobbin for weft insertion. A 12-dent reed is used for dressing the loom. Additional supplies include scrap yarn for spreading the warp and securing the piece during the initial stages of weaving.

Finishing Details

The scarf includes 1.5 inches of fringe on each end as standard. Weavers have the option to create longer twisted fringe if desired, with the pattern providing sufficient warp yardage to accommodate up to 7.5 inches of twisted fringe by leaving at least 12 inches of unwoven warp.
